The Vertical Lift Storage System integrates efficient storage and material protection, and its unique design ensures that the container can achieve the maximum load capacity while minimizing the unit's self-weight.

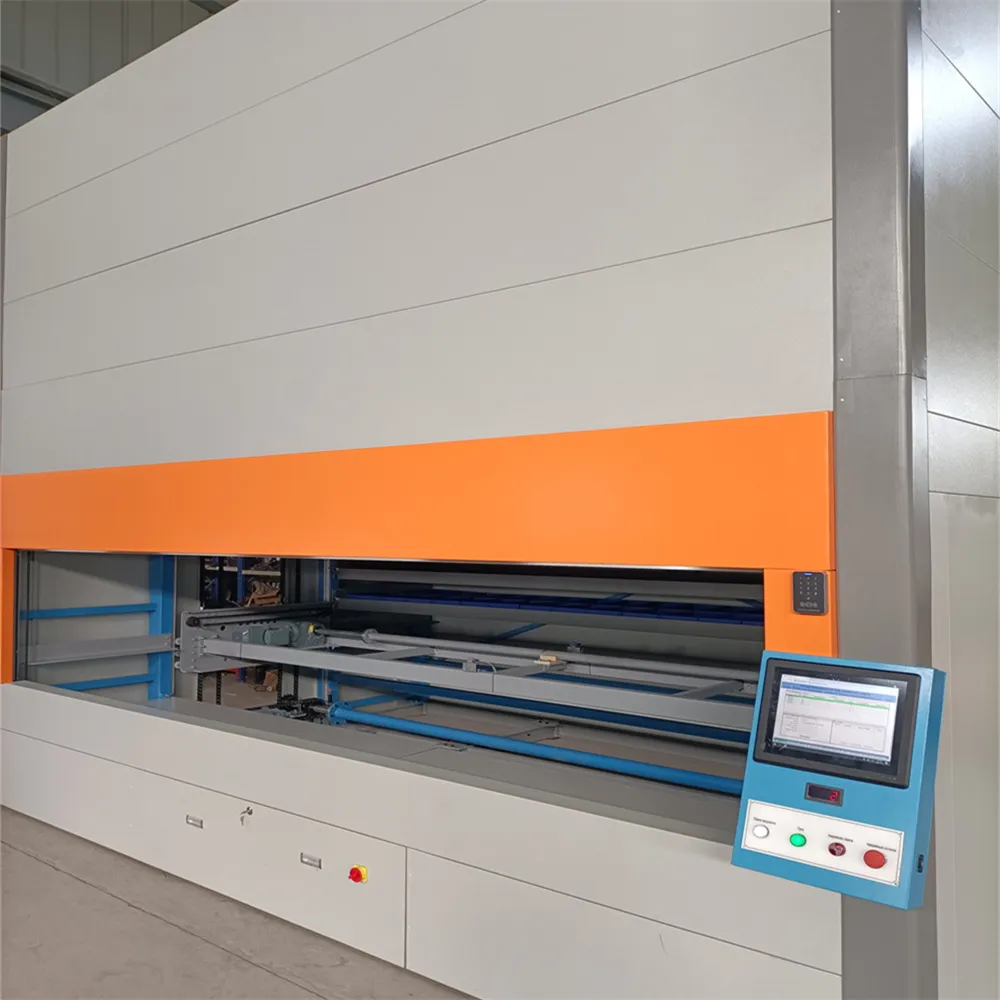

The Automotive Vertical Lift Storage System integrates high-efficiency storage and material protection. The front and rear of the system are storage racks, where pallets are stored. The storage area instructions are implemented through a computer system, allowing for the retrieval of pallets as required. In addition, the equipment's access port is designed at the optimal height according to ergonomic design, making the operation convenient and comfortable.

Here are the advantages of using a vertical lift storage system:

1. Increase storage capacity by at least 60% and make use of highly optimized storage space.

2. The goods arrive at the person, rather than the other way around, which can save labor costs and time to access the goods.

3. The high-performance control system protects the vertical elevator's flexible and reliable operation.

4. Easy to operate, the operator only needs to press a button to access the item.

5. The safety design makes the operator worry-free. The single vertical lift storage system can carry up to 60,000kg, and the single pallet can carry up to 1,000kg. It can store items of different sizes.

6. All designs of the vertical lift storage system fully consider the safety of users, including the safety of operators, equipment, and items.

For example, safety grids ensure the safety of operators in real time, maintenance door systems ensure the safety of users and maintenance personnel, up and down deceleration switches and limit switches ensure the safety of equipment, sliding door locks and encryption functions ensure the safety of goods, etc.

The main body of the vertical lift storage system is composed of four side panels. Its side panels are both the skeleton of the container and the beautiful outer wall, and at the same time, they are the support for the pallet on the inside. All the items are supported by these four side panels. The unique design can ensure that the container can achieve the maximum load capacity with the minimum unit weight.

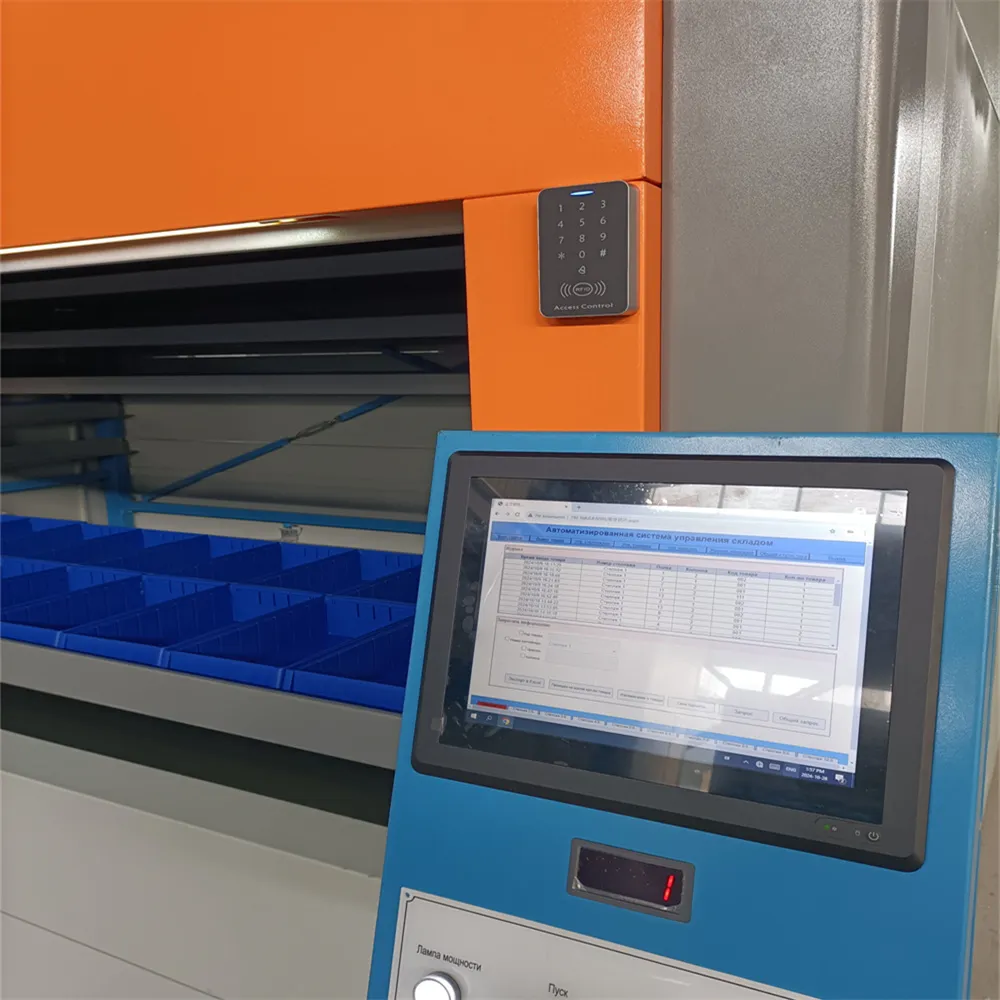

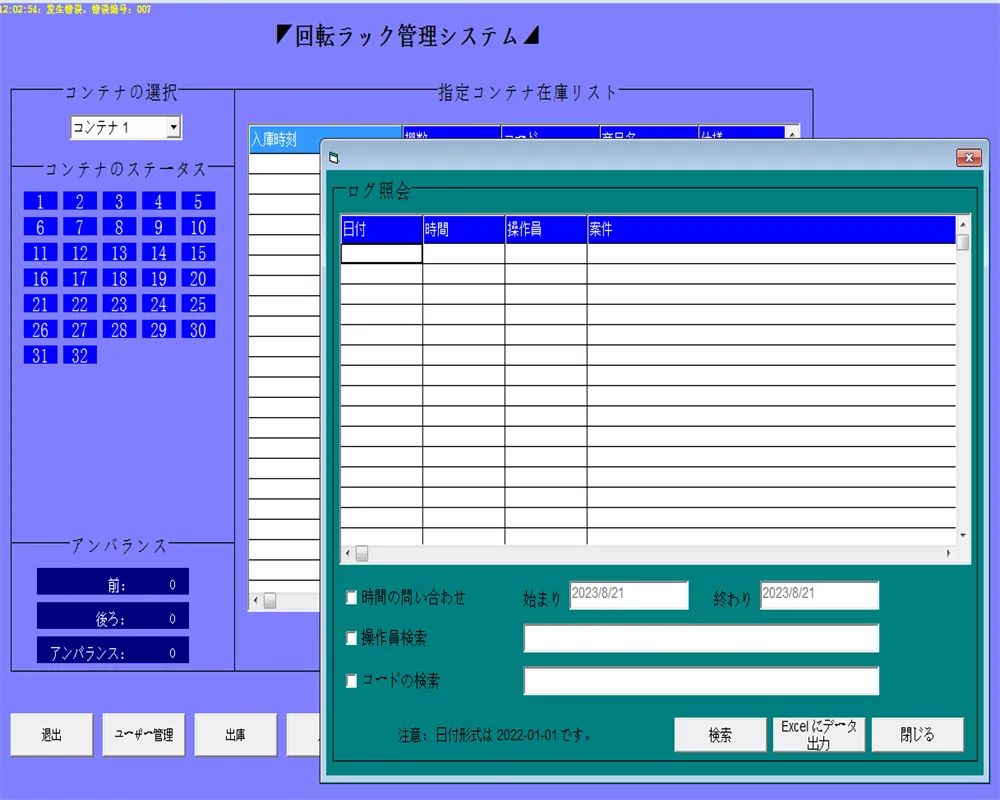

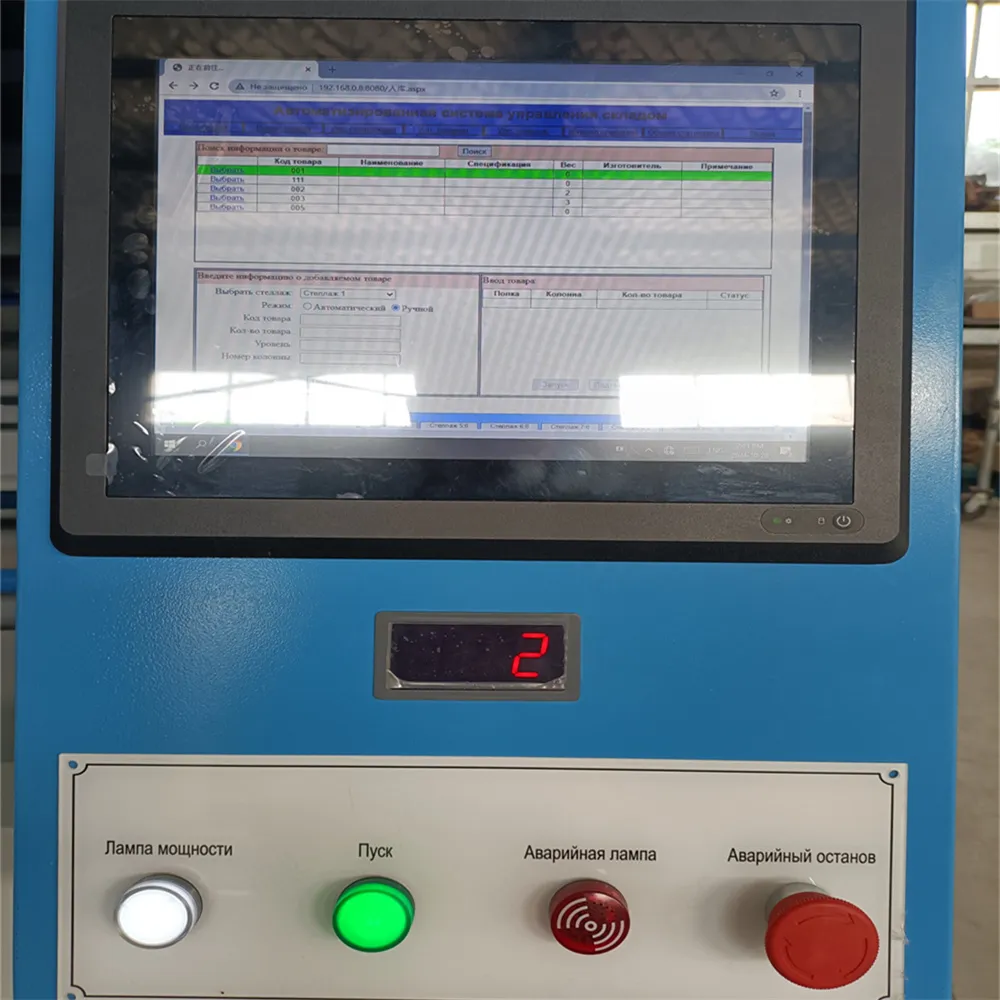

The controller has an independent warehousing management system, which can easily be connected to the user's ERP system to provide users with item warehousing management. For example: first-in-first-out, real-time inventory statistics, pallet encryption, quantity log, etc. It can also be connected to barcode scanners, electronic scales, etc. The combination of various functions can meet the warehousing management requirements of most users.

When choosing a Automotive Vertical Lift Storage System, enterprises need to consider whether the equipment function and requirements can be highly matched. Welcome to call for consultation. Hanwei will provide you with high-quality products and thoughtful service.
